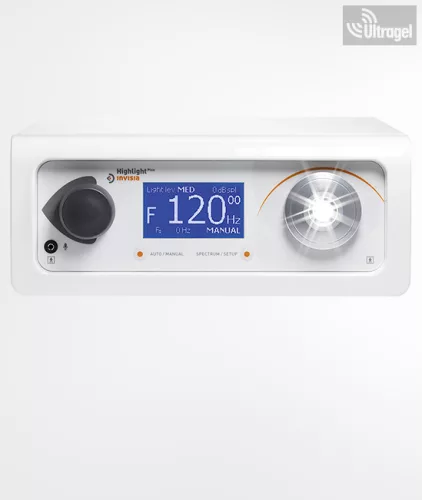

HighLight Plus - LED light source (continuous and strobe) 800lumen



HighLight Plus is Invisia's top-of-the-range strobe light source.

Based on LED technology, it provides excellent images of vocal cords and powerful continuous light for all endoscopic applications.



Light source: white LED 6.800°K - 2000 lumens - 20.000 hours lifetime



FULL-FEATURED INSTRUMENT
Slow motion with three speeds, stationary mode with manual phase adjustment, sound power spectrum display, two foot pedal control, USB communication with computer, ultra-precise DSP-based algorithm for pitch extraction: these are just some of the features that make HighLight Plus the perfect choice for the most demanding clients.



LED TECHNOLOGY.
A key feature of the HighLight Plus is its ultra-high-power LED source, which emits perfect white light with the same intensity as a 180-watt xenon lamp (in continuous operation), without the need for expensive bulb replacements. Unlike xenon lamps, the LED lamp can be used in both continuous and stroboscopic mode: the HighLight Plus can thus replace your light source for general endoscopy.



COMPLETE VIDEO STROBOSCOPY SYSTEM
For an uncompromising video recording system, combine the HighLight Plus with the MediCam Plus LT camera: you will be impressed by the quality and definition of the images.

Details
4 260 000 Ft
Details

56589005



Identical to the BASIC source, with the following data:

 Light source: white LED 6.800°K - 2000 lumen - 20.000 hours lifetime
 Use mode: continuous or strobe light
 F.0. manual or automatic, range 70 Hz - 1.100 Hz
 Strobe mode: slow motion or freeze - 3 speeds 0.5-1-2 Hz
 Microphone: clip-on or contact
 Pedal: double
 Output: audio and USB
 Dimensions: control box 300 x 110 x 290 mm - NO MARKET
 Weight: 5 kg.



LIGHT SOURCE WHITE LED, EMBEDDED IN THE INSTRUMENT HOUSING


COLOUR TEMPERATURE 6,800°K
LED INTENSITY 2,000 LUMEN
LED LIFETIME 20,000 HOURS
MODE OF USE CONSUMABLE AND STROBE LIGHT
F0 EXTRACTION MANUAL OR AUTOMATIC
F0 RANGE 70 HZ - 1,100 HZ
SLOW MOTION 3 SPEED
MICROPHONE WITH CLIP-ON AND CONTACT MICROPHONES INCLUDED
FOOT PEDAL 2 FOOT PEDALS INCLUDED
LIGHT CABLE CONNECTION STORZ COMPATIBLE, OTHER STANDARDS AVAILABLE ON REQUEST
OUTPUTS AUDIO AND USB


POWER 5 KG
DIMENSIONS 300X110X290 MM (WIDTH X HEIGHT X DEPTH)
STANDARDS SAFETY: EN 60601-1 EMC: EN 60601-1-2

Info
Article No.
UG978833
Weight
5 kg/pcs
