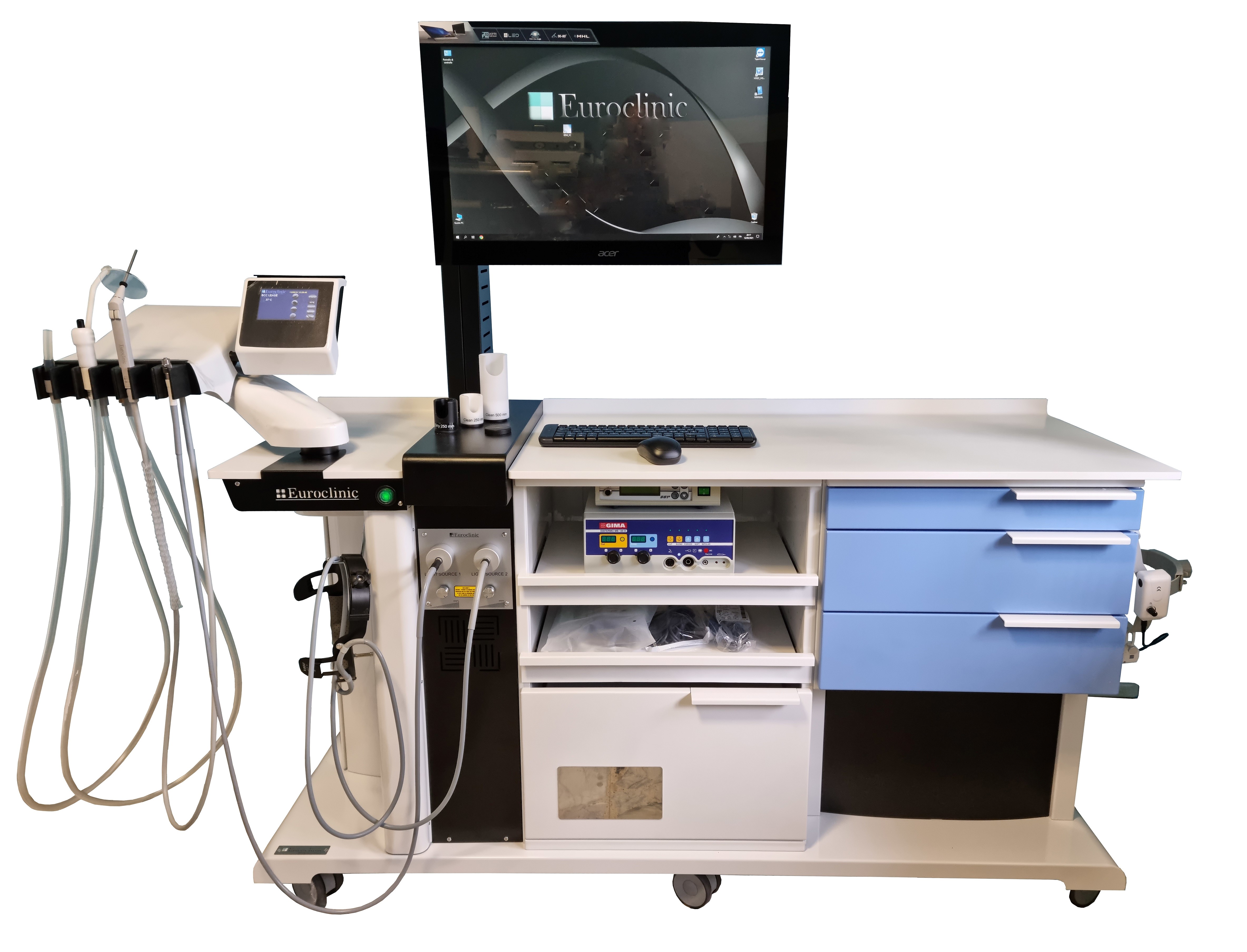

Ear, nose and throat workstation - Otocompact Professional Large

Ear, nose and throat treatment unit - Otocompact Professional EUROCLINIC - LARGE

Mid-range ear, nose and throat workstation for diagnostic, endoscopic and microscopic examinations, with LARGE SIZE CENTRAL HEAD / WORKING Desk

Steel frame structure, painted with epoxy powder in white or silver grey (optional).

Transparent glossy coating for easy cleaning and better protection against external influences (optional), which gives long durability and high gloss resistance to the colours.

The frame can also be moved and braked on 6 anti-static castors, which help the operator to clean and disinfect the floor and easily place it anywhere in the outpatient room.

Tempered glass or Corian® worktop is easy to clean, scratch and water resistant for a high level of infection control. Linear surface for easier disinfection against bacterial growth.

Accessories:
4.7" touchscreen graphic LCD display on control console
4-piece instrument holder;
Dust blower (option)
4-point control panel (optional), with integrated dust extractor (-85kPa, 40L/min)
Insufflator
Ear wash syringe - 37 degrees Celsius water, 380 cm3/min (option)
1 LED-illuminated fibre-optic lamp output
Headlamp on/off switch
Mirror preheater
3 endoscope holders
Tray support arm
LCD monitor holder arm (option)
Germicidal lamp drawer
2 litre water tank
LCD display on control console

Options:
Up to 10 drawer combinations available for instrument storage and external electro-medical equipment - Front drawers in epoxy powder coated metal or glass (over 20 shades available)
Motorised waste bin
Use of a second suction system
Single-use waste suction container SERES (1 or 2 litre capacity)
Automatic emptying system
Flushing system for suction hose
Connection to the water network
Blowing system with digital manometer
Application of ear wash syringe with fixed temperature
Application of a medication kit for powder and liquid medication
No. Endoscope 8 integrated holder in plexiglas
Warming application for 2 endoscope holders
Built-in LED light source with 1 or 2 outputs - colour temperature 5500°K/200 LED light source with hand-held lamp, direct connection to endoscopes
Excellent modular desk on 3 levels with stainless steel trays (optional, heated)
Pole support for microscope and monitor articulated arm
Video endoscope system
Microscope
Video Nistagmoscope
Rhinomanometer



The system includes additional accessories:

- Suction system with 1 litre reservoir (expandable to 2 or 4 litres)
- 1 or 2 litres with 2 or more suction heads. 2 or 3 x 2 hose assemblies with 2 or 3 hose reels

- Bacteria filter

- Ear wash funnel with quick inlet connector

- Headlamp holder
- N.3 Endoscope accessories: for flexible and rigid endoscopes 1-1pcs
- Microscope connection preparation which can be mounted on the working unit
