Flexible fibre optic + LED light source

Name: Flexible fibre optic + LED light source
SKU: UG285284
Price: 4100000 HUF

Item number:

UG285284

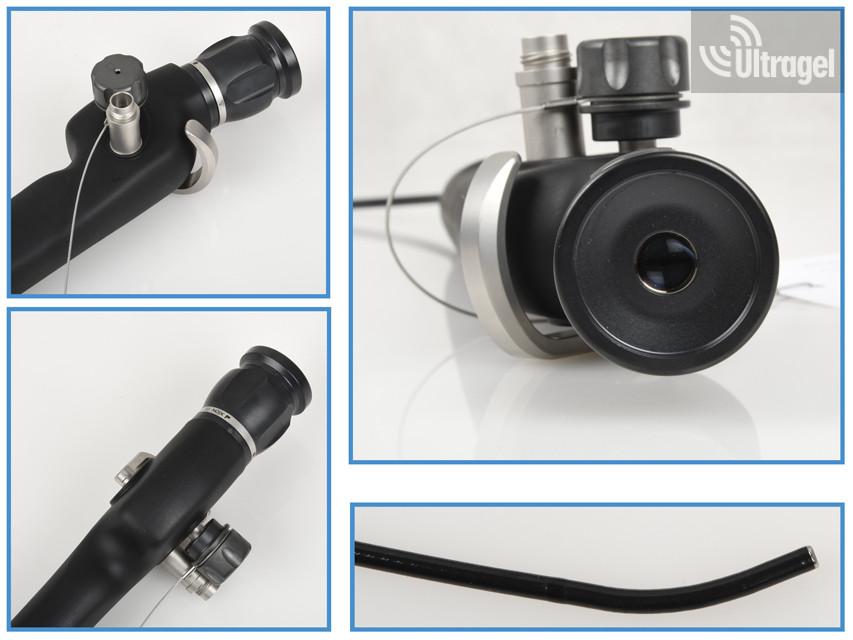

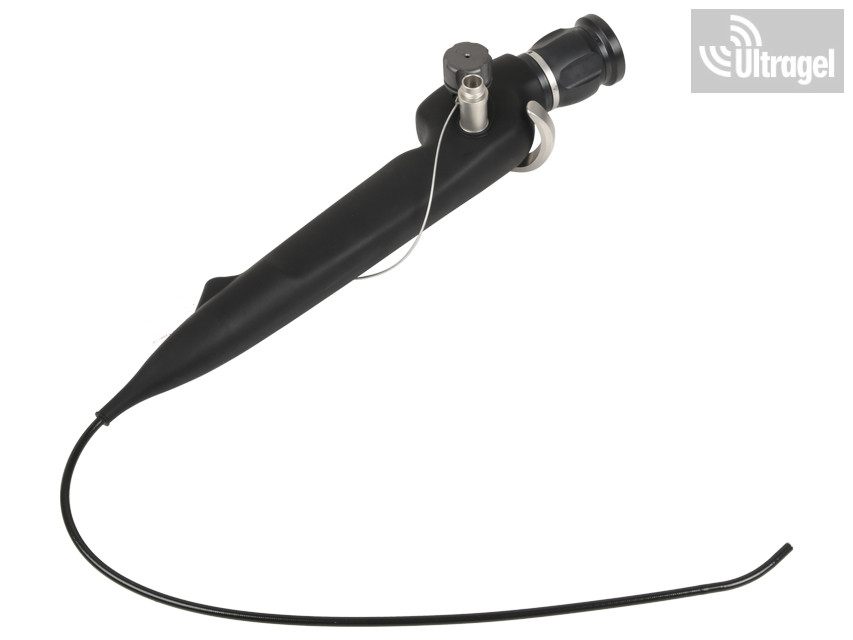

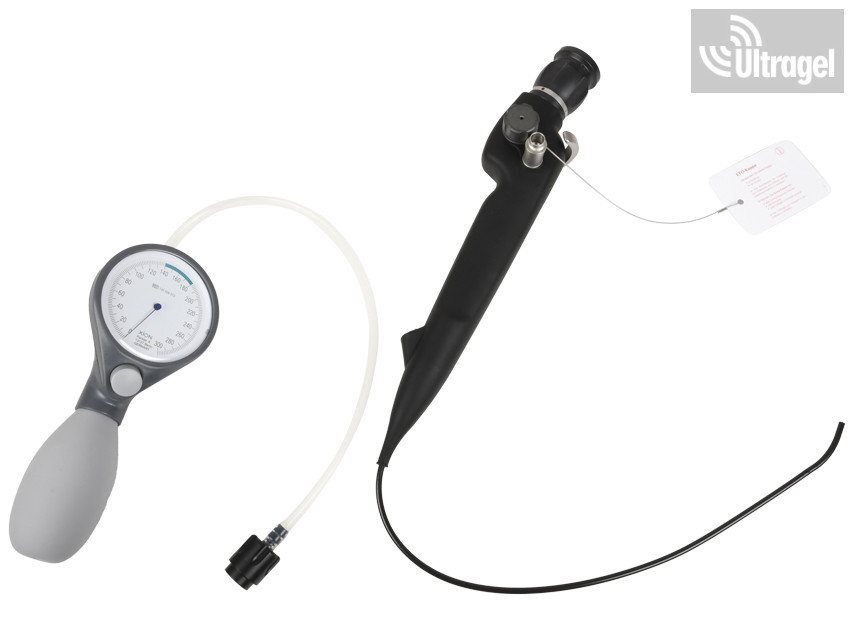

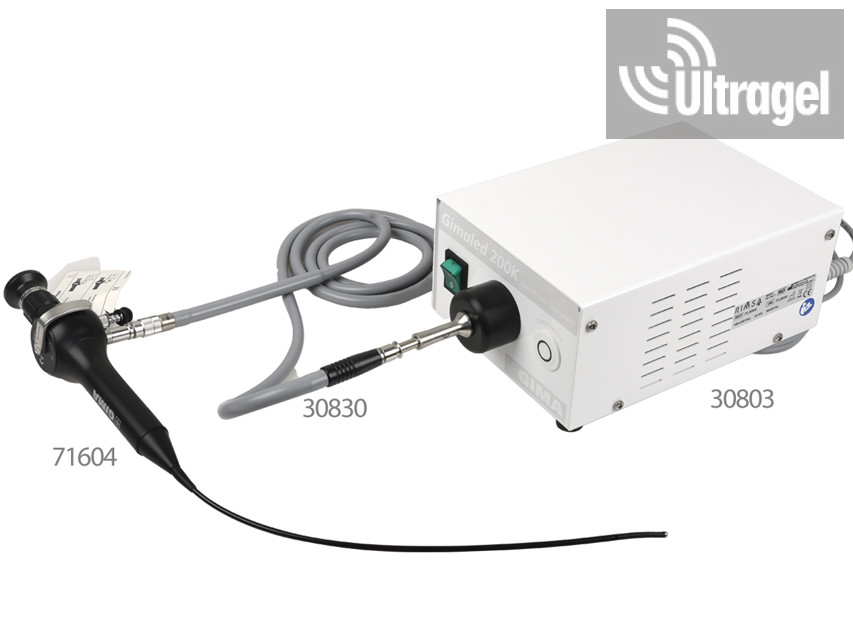

Flexible Fiber Optic + LED Light Source (71604 + 30830 + 30803)

High precision multi-lens optics.
The thin working channel provides exceptional manoeuvrability.
Features a special wide-angle lens for the best depth of focus.

Precision machining and high quality materials ensure absolutely homogeneous illumination.

- Wide-angle, multi-lens lenses for excellent image quality
- Excellent ergonomics allow one-handed operation

Made in Germany.

Light source:

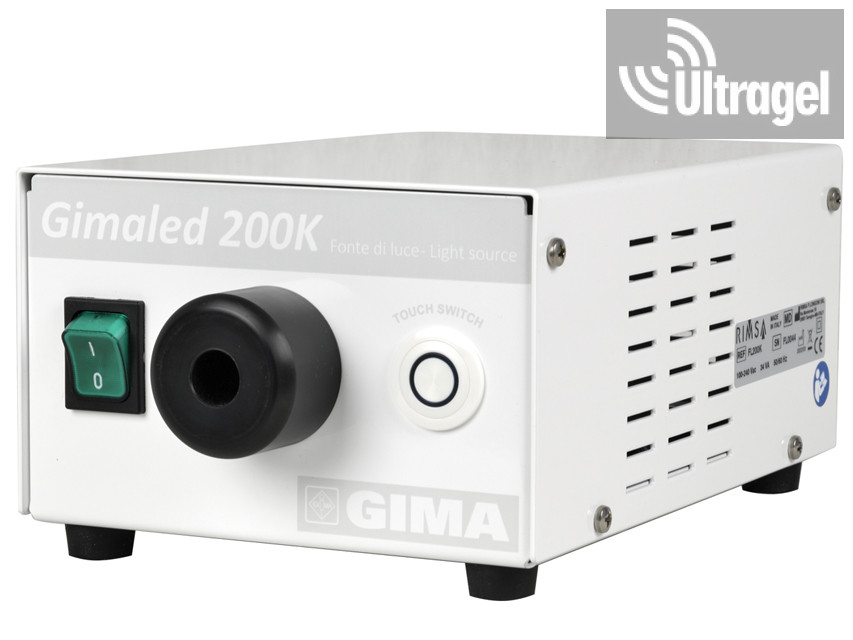

30803 GIMALED 200K LED LIGHT SOURCE

Compact, lightweight, powerful light source for endoscopic use.
Light intensity with low noise fan, touch switch light intensity
Weight: 3 kg

Optional connectors allow the use of STORZ, WOLF, OLYMPUS, PENTAX, FUJINON cables, for which a separate adapter is required

71604

4 100 000 Ft

Details

Technical data for fiberscope

- Resolution: 12 000 pixels
- Working channel Ø: 3.8 mm
- Slide length: 20 mm
- Viewing direction: 0°
- Weight: 260 g
- Working length: 300 mm
- Total length: 535 mm
- Bending angle upwards 140°, downwards 140°
- Depth of focus: 6-1000 mm
- Field of view: 70°

Specifications for LED Light source:
Illuminance at 2.5 cm: 147 000 lux ± 10
Colour temperature: 5000 K ± 5%
CRI (colour rendering index): 89 Ra
LED lifetime: 60,000 hours

Data

Weight:

3 kg/pcs
